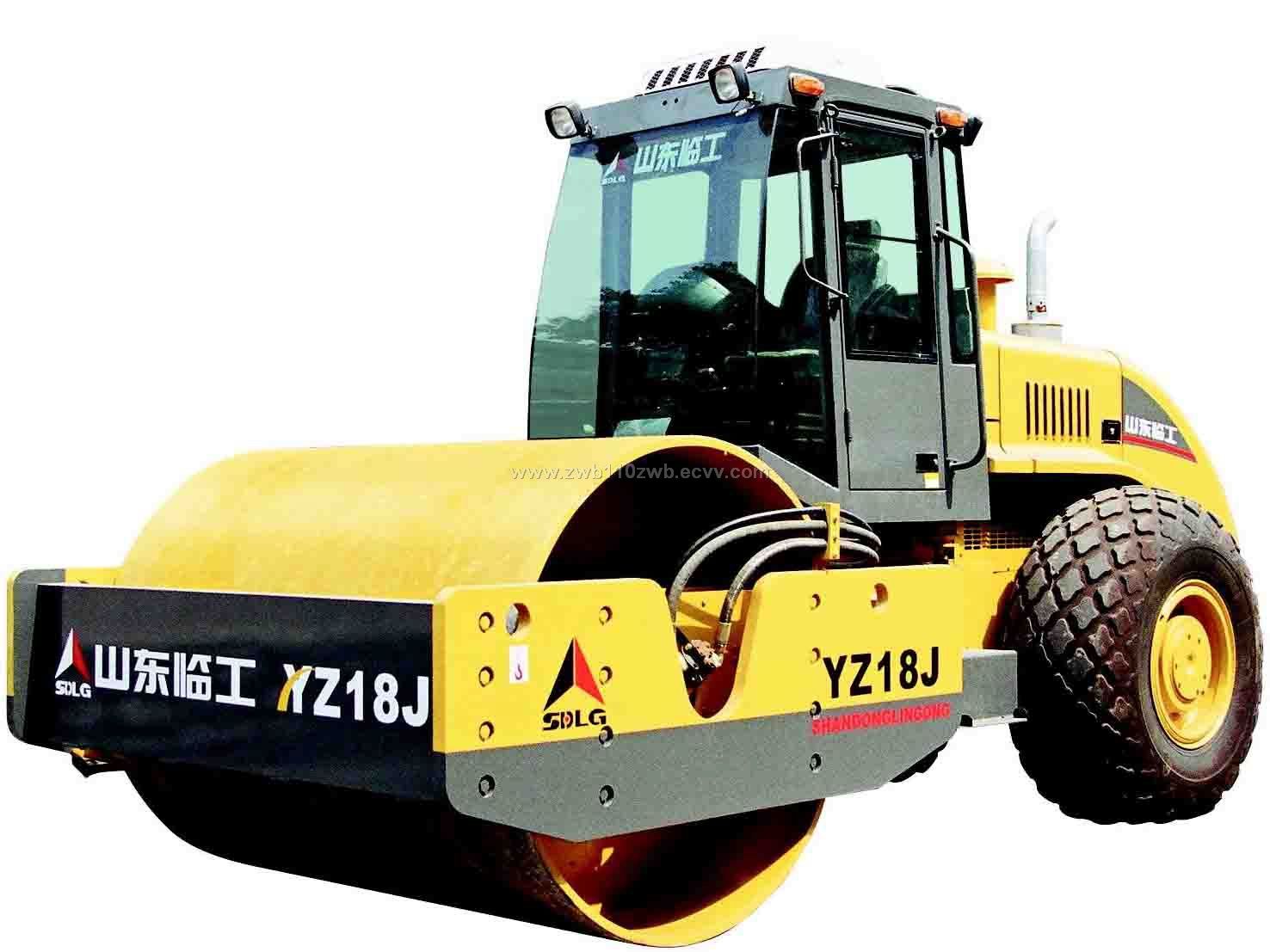

road roller

Detailed Product Description

Standard equipment
RATED POWER--------------------------132KW
VIBRATE FREQUENCY
CLOCK WISE--------------------------------35Hz
CONTERCLOCK WISE--------------------28Hz
OPERATING WEIGHT---------------------20.0t
INSPIRE FORCE--------------------360/280KN
VIBRATE GEAR WIDTH--------------2150MM
ENGINE
Model ---------------------------------------D6114ZG6B
Rated power--------------------------------------132kW
Rated speed--------------------------------2000r/min
Max. output torque------------------------------685Nm
TRANSMISSION SYSTEM
Speed
Forward-------1st: 0~2.7km/h,2nd:0~5.4km/h
3rd:0~11.4km/h
DRIVING AXLES AND MAIN DRIVE
Main drive
Type----------------------single stage, spur gear
Gear ratio--------------------------------------5.286
Final reducer
Type-------------------single stage planetary shift
Gear ratio-------------------------------------------4.4
BRAKING SYSTEM
Braking pressure----------------------0.6~0.8Mpa
Service brake--------Air over hydraulic disc brake
Parking rake-----------------------Drum type brake
STEERING SYSTEM
Type--------------Full-hydraulic articulated steering
System working pressure------------------14.0Mpa
Steering angle --------------------------------------35?
Min. turning radius-------------------------6213mm
HYDRAULIC SYSTEM OF WORKING DEVICE
Type----------------------------------------Close type
Vibrate Frequency
Clockwise----------------------------------35Hz
Couterclock wise---------------------------28Hz
System pressure
Start pressure--------------------------------38Mpa
Work pressure-------------------------------14Mpa
Vibrate range A0
Big------------------------------------------------2.0mm
Small---------------------------------------------1.0mm
Inspire Force-----------------------------360/280kN
SERVICE REFILL CAPACITY
Fuel-------------------------------------------------280L
Hydraulic oil--------------------------------------100L
Crankshaft box------------------------------------24L
Transmission box----------------------------------8L
Axle (main drive and finial reducer)----------24L
Braking system------------------------------------2L
TIRE
Standard tire---------------------------------23.1~26
Tire pressure----------------------------------0.2Mpa
