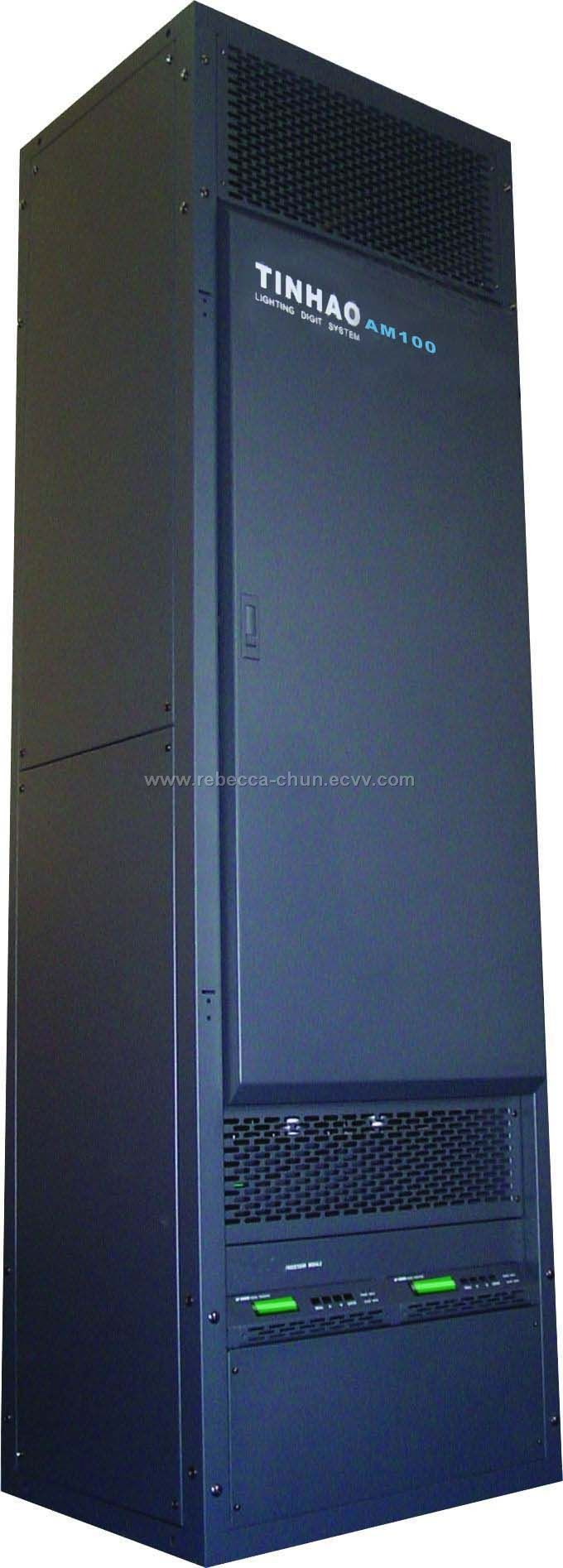

Plug-in type Modular Digital Dimming System;
Dual electronics processor option for full redundant tracking backup;
16ms respond time;
Dual DMX512 input;
Up to 96 x 6Kw dimmer (48 modules) per rack;
16 bit fade accuracy
Rack processor keypad and LCD display for full functionality
10 cue preset
No DMX hold and backup cu run are available
Test button on each Single channel
Pure photo-optic cell for signal input isolation;
Low interference prevents Noisy feedback to Power Connection
Over load /Over heat warning system, intelligent fans to keep internal 45篊
Perform regularly in case one fault from short-circuit protection
High safety for both input and output dimmer
Reporting data is available by VGA signal output
Line regulation maintains dimmer output levels to within +/-1v of set output within the range of the control electronics(100v to 240v)
Parameter:
Operation Voltage:190v-240v
Frequency: 45Hz-65Hz
Maximum relative humidity:95%(no drops)
Fade accuracy: 16bit
Auto Voltage Compensation: Effective when input at 10% variation
Dimmer output consistency: less than 1V
Maximum output voltage: around 99.98%
Minimum Load: 60W
Dimmer Capacity: 96 x 6KW
Signal: Dual DMX-512
Dimming range:1-100%
Respond time:26ms
Pre-heating value: 0-10%
Operating: 24hrs daily (full load), 2hrs (120% overload)
| Place of Origin: | Guangdong Guangzhou in China |
| Model No: | 60/96 X6KW |
| Brand Name: | TINHAO |
