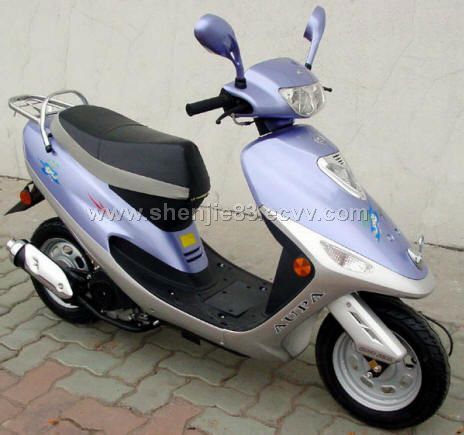

GAS SCOOTER CTM50QT-A(3)

Dimension（mm）Long*width*high (mm ):1660*680*1070
Axle distance （mm）:1190
Gap from the ground（mm）:70
Weight for no load （kg） :79
Max speed （km/h）:50
Max loading weight （kg):75
Type of engine:139QMB
Displacement （ml）:49
Compression ratio:6.5:1
Starter mode:Electric/kick
Type of tyre :    front 3.00-10  rear3.00-10
Gear shift mode:Stepless
Lubricate mode:Automatic
Brake operation :  front Drum/Disc rear Drum
Igniter mode:CDI
Max power (kw/r/min):1.82/5500
Max torque (nm/r/min):3.6/4500
Type of storage:12V5AH

Place of Origin:	Jiangsu province Wuxi city in China
Model No:	GAS SCOOTER CTM50QT-A(3)
Brand Name:	CTM/CLM
