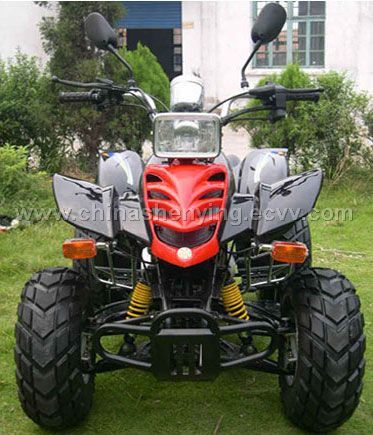

200CC, Single-Cylinder, Air-Cooling ATV EEC

Detailed Product Description

SY-ATV200A1 (road legal)
L x w x h(m m): 1585x980x1010
Wheel base(mm): 1110
Engine type: Single cylinder, air-cooling, four stroke, 200cc
Start mode: Electric
Power(kw/r/min): 10. 0kw/7500r/min
Max torque(n. M/r/min): 13. 5n. M/6500r/min
Max speed(km/h): >60
Mini ground clearance (mm): 150
Dry weight(kg): 150
Transmission mode: Axle
Brake type: Drum / disc
Battery specification: 12v9ah
Climb degree: >20"
Front hanging: Arm-swing
Rear hanging: Integral
Tyre specification: Front wheel: 19x7-8 rear wheel: 18x9. 50-8
Cylinder diameter*journey(mm) 63. 5x62. 2
Shift gear: Four gear with reverse gear, munual clutch
Height of seat (mm): 770
Mini turing radium (mm): 2400
Packing trig: Mechnical lock
Ignition mode: C. D. I
Max loading capacity (kg): 150
Engine oil (l): 1
Gear oil(l): 0. 2
Person: 1
Lubrication: Press splash
Compression: 9. 2: 1
Packing diamesion (mm): 1490*840*770
Quantity of loading: 20ft: 29pcs
40ft: 64pcs
40hq: 66pcs
