We are one of leading manufacturer of Cummins, Daewoo, Perkins, Deutz diesel generator sets with standby power 22kva to 2.2Mva in China.

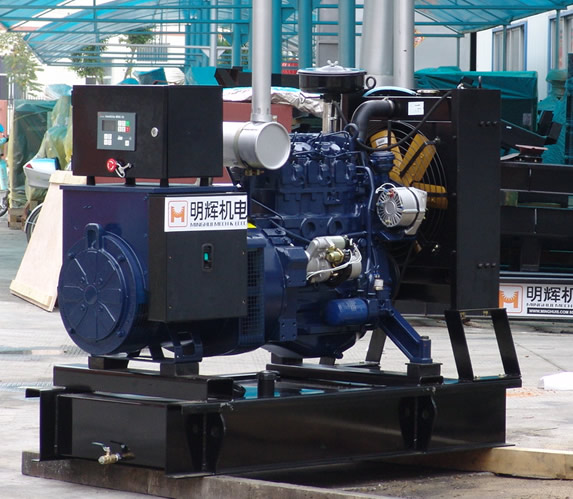

Deutz diesel generator sets (22kva-125kva)
Specifications:
1) Output range: 17.6kW (22kVA) - 110kW (125kVA)
2) Deutz Engine models: D226B-2, D226B-3, TD226B-3, TD226B-4, TD226B-6, TBD226B-6
3) Alternator model: Leroy Somer / Stamford. (Excitation: Brush less)
4) Water-cooled
5) 8hours operation base fuel tank
6) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
7) Voltage adjust range: ≥?%
8) Steady State Voltage regulation: ≤?%
9) Insulation class: H
10) Protection: IP22
11) Control panel consisting of:
Emergency Stop button
Voltmeter and or switch
Ammeter and or switch
Frequency meter
Controller with ion for auto-start, manual-start and Automatic alarm system with following (and not restricted to) features:
Start/Stop button
Hour run meter
Monitor engine temperature and provides shutdown protection
Monitor engine speed and provides optional shutdown protection
Monitor oil pressure or level and provides shutdown protection
Alarm output for abnormal operation
12) Sound-proof / weather-proof canopy is available
13) Detailed specification will provide upon requested
| Place of Origin: | Fujian Fuzhou in China |
| Model No: | Deutz diesel generator sets (22kva-125kva) |
| Brand Name: | MINGHUI |
