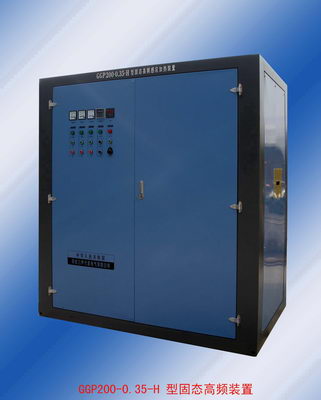

SOLID STATE HF WELDER

Detailed Product Description

Features:
1) High efficiency > 85 %
2) Automatic frequency tracking
3) Self diagnostic system for easy and fast fault finding
4) Compact design
5) Easy installation
6) Reliable performance
The GGP series solid state high frequency induction welder is a high frequency power supply that convert the three phase alternating current of 50Hz/60Hz line frequency to the single phase high frequency (100~450 kHz) current for the purose of steel tube / stell pipe welding.
The GGP series solid state high frequency induction welder / generator, also known as transistor welding machine, integrates the modern power electronic device MOSFET module as the key device of the inverter. The intelligentized control system of the rectifying and inverting is achieved through single chip microcomputer. Our HF welder is featured with high efficiency, simple and reliable configuration, easy debugging and operation, energy saving, etc.
HF Welder Specifications
Power output 60kW 100kW 150kW 200kW 300kW 400kW
DC power 60kW 120kW 180kW 240kW 360kW 480kW
Rated voltage 400V
Rated current 150A 300A 450A 600A 900A 1200A
Place of Origin:China
Model No:GGP series
Minimum Order:1 SET
Supply Ability:NEGOTIABLE
Package:WOOEN PACKING
Delivery Time:30-50
