Golf Trolley

Detailed Product Description

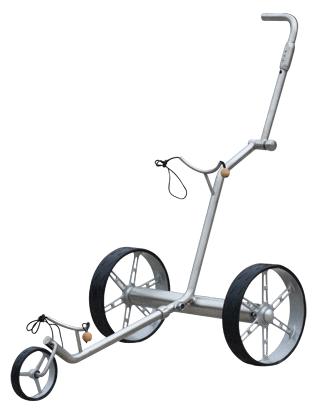

GOLF TROLLEY

Model: 002C
1. Parts:
1) Stainless steel frame,
2) Wheels, tyres,
3) Control panel, buttons controllers,
4) Motor, lithium batteries, chargers

2. The frame is made of 304 stainless steel, rapid, folding, portable.

3. The wheels are made of magnesium alloy, light in weight and strong in load bearing.

4. The tires are made of high quality natural rubber, have no unusual smell, brightly, luster

5. The control panel: 304 stainless steel, pretty appearance, with three stainless steel buttons, the function of the three buttons:
1) Go ahead/speed up: Press the button for once, the trolley begins to go ahead on the lowest speed. Press once more, it will speed up, keep on pressing it and it will speed up until the speed rised to 7.5km/hour
2) Power on/power off, push: Press the button of once, then the trolley will be power on. If you press it continually for more than five seconds, it will be power off.
3) Back off/speed down: If the trolley is go ahead when press the button for once, the trolley begins to speed down, press it once more, it will speed down, keep on pressing it and it will speed down until stop. If you press it once more, it will begin to go back off. If the trolly is stop when you press this button, it will begin to go back off.

6. Controller chip microcontroller for control, able to overload protection and self-checking function, extending controller stability and life

7.2kg weight lithium batteries charge more than 400 times, Charge time: 2-3 hours

8. Important parameters:
1) magnesium alloy wheel ¢150mm (front) / ¢300mm (back)
2) Motor: Input: 120 Watts * 2 pcs
Output: 80 Watts * 2 pcs
3) lithium batteries: 25.9V/10Ah
4) Charger: 110V AC/240V AC/12V DC
5) Charge time: 6-8 hours
6) Max. Speed: 7.5km/ hour
7) max. Carrying capacity: 40kg
8) maximum travelling range: 20km
9) Climbing capacity: 15 degrees
10) Packing: Carton
11) Carton size: 76*65*23 cm
12) N. W/G. W: 12kg/16 kg
