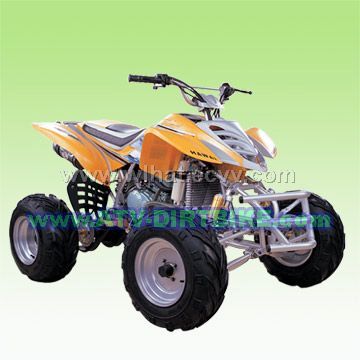

ATV (CK200S-6A)

Detailed Product Description

length*width*height（mm) 1800?120?130
wheel base(mm) 1150
engine type single cylinder;water-cooling;four strokes
start mode electric
power(kW/r/min) 10.3KW/7500r/min
max torque(N.m/r/min) 15N.m/6000r/min
max speed(km/h) >75
mini ground clearance(mm) 120
dry weight(Kg) 155
transmission mode chain
break type drum/disc
battery 12V 9Ah
climbility >20?
tank capacity（L） 4
front shock absorber integral ballonet absorber
rear shock absorber inner ballonet absorber
tyre F:21?-10 R:20?0-10
cylinder diameter*journey(mm) 63.5?2.2
displacement(ml) 197
shift gear 4 F/with R,manual clutch
seat height(mm) 880
mini turning radium(mm) 2650
parking trig mechanic lock
ignition mode CDI
loading capacity(kg) 150
engine oil(L) 1
gear oil 800ml
person 1
lubrication press splash
compression ratio 9.2 : 1
cylinder number 1
packing dimension(mm) 1470?60?80

QTY/Container: 20 units/20'; 44 units/40'; 66 units/40HQ
