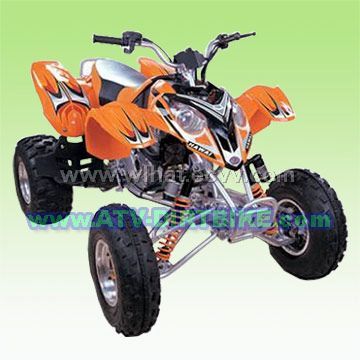

ATV (CK300S)

Detailed Product Description

length*width*height（mm) 1840 x 1200 x 1175
wheel base(mm) 1230
engine single cylinder, air-cooling, 4-stroke
start mode electric
power(kw/r/min) 14.7KW/8000r/min
max torque(N.m/r/min) 20.0N.m/6000r/min
max speed(km/h) >85
mini ground clearance(mm) 113
dry weight(Kg) 190
transmission mode chain
break type disc/disc
battery 12V20Ah
climbility >20?
tank capacity（L） 10
front hanging double swing arms
rear hanging integral
tyre F: 21x 7-10 R: 20x 11-9
cylinder diameter*journey(mm) 78 x 61.2
displacement(ml) 249
shift gear 6F/with R, manual clutch
seat height(mm) 860mm
mini turning radium(mm) 3000mm
parking trig mechanical lock
ignition mode CDI
loading capacity(kg) 150KG
engine oil(L) 1.3L
person 1
lubrication press splash
compression ratio 8.9:1
cylinder number 1
packing dimension(mm) 1950 x 1120 x 880

QTY/Container: 10 units/20'; 24 units/40' 36 units/40HQ
