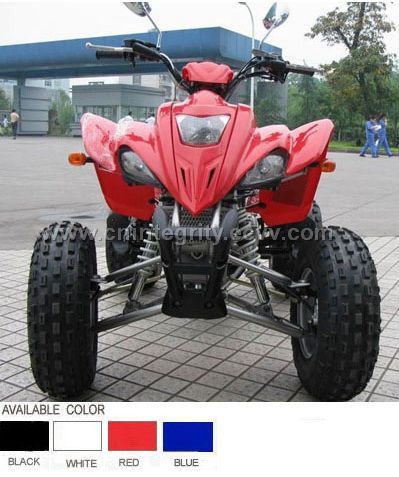

EEC ATV/Quad 350cc&400cc (ECATV350)

MODEL: ECATV350

EC approval number: e13*2002/24*0095*00

Engine:
1) Engine type: single cylinder, upright, air cooled, 4-stroke

2) Displacement: 349ml

3) Bore and Stroke: 83 * 64.5mm

4) Ignition model: CDI

5) Compression proportion: 9.2:1

6) Fuel tank capacity: 9.0L

7) Max. power: 19.0Kw/7500r/min

8) Ground clearance: 245mm

9) Max.speed: 95km/h

Transmission:

10) Start mode: Electric & kick start

11) Transmission type: chain drive

12) Transmission: 6 gears with one reverse gear

13) Front brake: double disc/handle brake

14) Rear brake: sinle disc/foot control

External condition:
15) Product dimensions: 1,870 x 1,100 x 1,160mm

16) Wheelbase: 1,230mm

17) Seat height: 830mm

18) Climbing degree: 25 degree

19) Front wheels: 21 x 7-10,25kpa

20) Rear wheels: 20 x 10.9-9,25kpa

Packing:

21) Dry weight: 190kg(with battery)

22) Load capacity: 150kg

29)Conveyance:
Qty/20'FCL: 12 units
Qty/40'HQ: 38 units

Model No:	ECATV350
Package:	Stadard export carton outside,iron frame inside
Delivery Time:	15 working days
