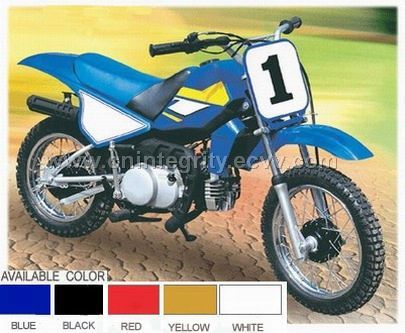

Dirt Bike-80cc (DB80)

MODEL:DB80

Dimension(L*W*H)(mm): 1540 x640 x880

Wheel Base(mm): 1055

Dry Weight(kg): 61

Max Load Capacity(kg): 65

Engine Type: 2-Stroke, Air-Cooled

Cylinder Arrangement:single cylinder

Transmission System: Chain drive

Bore * Stroke(mm): 47 x 45.6

Piston Displacement(cc): 79

Compression Ration: 7.0:1

Maximum Power(kw/r/min): 3.8/6000

Maximum Torque(N.m./r/min): 6.5/5250

Starting System: kick starter

Lubrication: Auto

Transmission: 3speeds, Semi automatic

Seat Height(mm): 630

Min Turning Radius(mm): 1600

Ground Clearance(mm): 185

Rider Capacity: 1

Brake(Front/Rear): drum/drum

Tyre,Fromt: 2.50-14-4PR

Tyre,Rear: 3.0-12-4PR

Ignition Type: CDI

Fuel Tank Capacity(L): 4.9

Engine Oil Capacity(L): 0.6

Front Suspension: Flexing Front Fork

Rear Suspension: Monoshock Swing Arm

Conveyance: Qty/40'GP:150pcs

Place of Origin:	China|
Model No:	DB80
