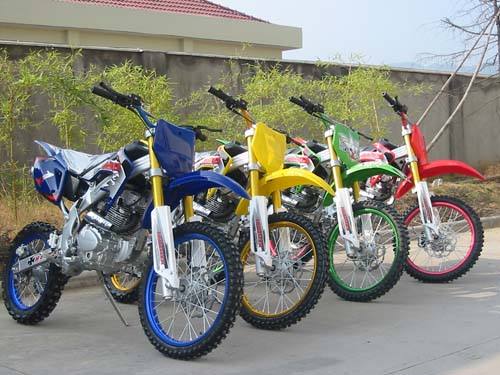

Jz-DB-003

Detailed Product Description

Transmission: Chain
Front suspension :Upside-down forks
Rear Suspension: Air cell shock absorb
Engine Type : 200cc, Single cylinder,4 stroke, forced air-cooling
Starting Mode: Kick/electric
Ignition Mode :CDI
Bore X Stroke :61*49.5 /63*62.2mm
Displacement 198ml
Max. Speed :130km/h(80.78mile/h)
Max. power output: 10.8/8000
Max Torque and Rotate Speed :13/7000
Wheelbase: 1370mm(54inch)
Min. Ground Clearance :360mm(14.2inch)
Seat Height: 880mm
Front/Rear Brake system: Disc
Front/Rear Tyre Size :70/100-19 / 90/100-16
Max. Payload :150kg
Overall Dimensions (L??) 1950*750* 1160 mm
Container: 32PCS/20GP, 105pcs/40HQ
