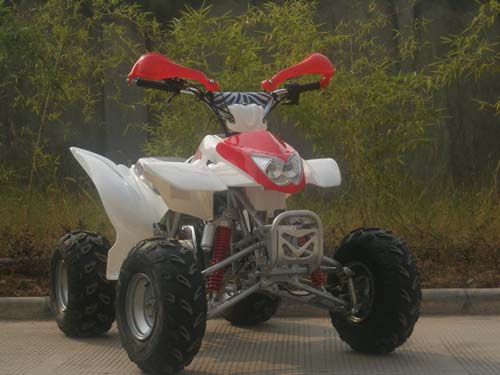

Jz-ATV-002

Overall dimensions (L x W x H): 1,650 x 1,080 x 1,110mm (64.96 x 42.52 x 43.7") Engine type: 200cc, single cylinder, 4-stroke, forced air-cooled Displacement: 198ml Max. payload: 150kg(330.69lbs) Max. speed: 80km/h Max. power (kW/r/min): 10.8/8000 Max. torque and rotated speed (N.m/r/min): 13/7000 Transmission: chain Front suspension: hydraulic shock Rear Suspension: hydraulic shock Front/rear tire size: 19.5x21-8 / 28.5x19-8 Wheelbase (mm): 1150mm(45.28") Min. ground clearance: 260mm (10.24") Seat height 830mm Front/rear brake system: drum/disc Starting mode: electric Conveyance: 65pcs/40HQ Colour:red,blue,black,yellow,green

Place of Origin:	Zhejiang in China
Model No:	Jz-ATV-002
Brand Name:	QUAD
