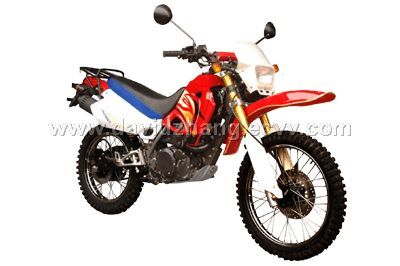

250 DIRTBIKE(EEC)

Detailed Product Description

MODEL 250GY-6
Bore x Stroke (mm0 72.5*55.7
Piston Displacement ml 229.9
Compression Ratio 9.5:1
Max. Power (kw/r.min) 10.5/7500+5%
Max. Torque (N/r.min) 16/6000+5%
Start E/K
Transmission Chain
Cooling Air-cooled
Clutch Wet-mutil, manual
Stroke, Shift 4-strokes, international 5 shifts
Transmission ratio Primary: 3.333 I: 2.909 II: 1.867 III: 1.389
IV: 1.150 V:0. 959
Engine Model 172FMM
Lubrication Pressure/split
Lubrication oil capacity L 1.3
Ignition CDI
Battery 12V9A
Regulator All
Carburetor PZ30
Fuel capacity(L) 7.2
Economical Fuel Consumptions (g/kw.h) 354
LxWxH (mm) 2200x860x1300
Alex Base mm 1390
F wheel base mm -
R wheel base mm -
Seat Height mm 760
Turning Radium mm -
Ground clearance mm 270
Dead weight kgs 126
Load Capacity KGS 282
Rear Braking Type Disk
Tire Type F: 3.00-21-4PR
R: 4.10-18-4PR
Tire Pressure Kpa F: 225 R: 225
Climbing angle -
Max. Speed Km/h 95
20?40?40HQ?32/64/96
CARTON DIMENSSION 1770*530*1070
EEC NO。 ell*2002/24*0418*00
RRMARK 5 GEAR /DISC BRAKE SYSTEMS/CHAIN DRIVE/OVERHEAD CAM/FRONT UPSIDE DOWN SHOCK ABSORBER
