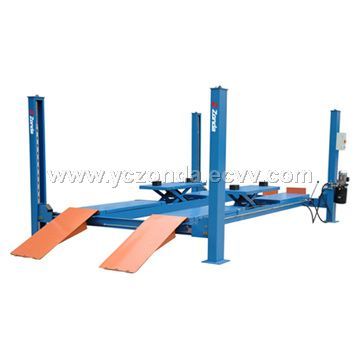

hydraulic 4 post wheel alignment lift

Detailed Product Description

Features: 1) International standard design, CE certified. 2) Anti-slip platform, distance adjustable to accommodate different vehicles 3) The hydraulic cylinder is inside the fixed platform and is thus perfectly protected 4) Safety systems against cable breakage, against obstacles during descend 5) Connected steel cables to force the synchronized moving of platforms 6) Secondary scissor lift for wheel free 7) Equipped with sideslip plates and spaces for turntables for 4-wheel alignment 8) ZD-QJY4FA-1 model with Italian pump station, Chinese hydraulic cylinder. 9) ZD-QJY4FA-2 model with Chinese pump station, Chinese hydraulic cylinder. (Italian cylinder optional) Technical data: Lifting capacity:4000kg Secondary lifting capacity:2000kg First lifting height:1550mm Secondary lifting height:300mm Min.height: 255mm Driv3-thru distance:2900mm Net weight: 1300kg First raising time:<80s First lowering time:<70s Secondary raising time:<30s Secondary lowering time:<30s Motor power:3kw/2.2kw Power supply:380V,220V
