Engine type:
1>200cc, 4-stroke, water-cooled, single-cylinder,
2>Bore*stroke(mm):63*62
3>Piston swept volume(ml):193.3ml
4>Compressing ratio:9.0:1
5>Max. Power and speed: 11. 0/7500(Kw/rpm)
6>Max torque:14.5/6000(N.m/rpm)
7>Clutch type:moist
8>Starting method: Electric
9>Transmission: 4-speed, manual clutch, with reverse,Chain,428H
10>Ignition: CDI

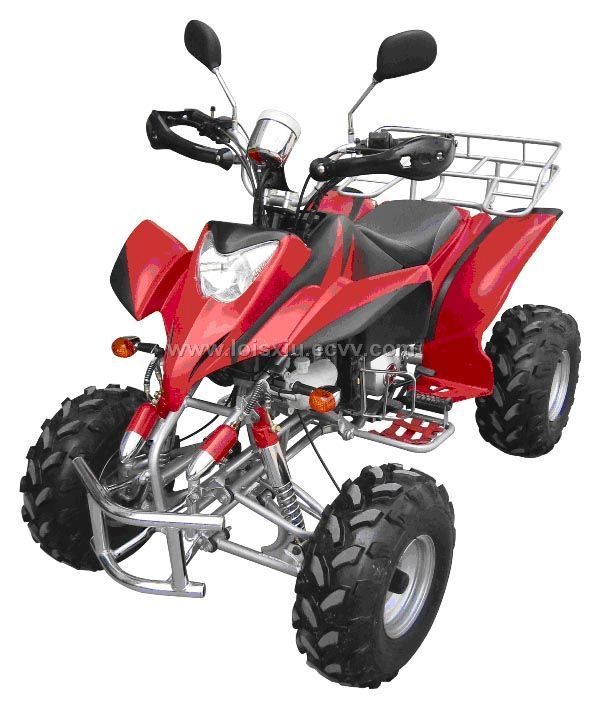

Vehicle specifications:
1>Dimension: (L*W*H): 1, 870*985*1, 340
2>Wheel base (mm): 1, 120
3>Ground clearance (mm): 100
4>Max speed (km/h): >65
5>Brake method(F/R): Double Drum / Disc
6>Tire size(F/R): 19*7-8/18*9. 5-8
7>Seat height(mm): 760
8>Fuel capacity: 5. 5L
Packaging: Carton with steel frame
Carton dimensions: 1480x850x780mm
N. W. /G. W.: 140Kgs/165Kgs
Conveyance: 30pcs/20', 64pcs/40', 66pcs/40HQ
Choose: 125cc, 150cc, 200cc air-cooled
COLOUR: Blue, red, black, yellow, green,
CE, ISO9001: 2000, VIN
| Place of Origin: | Zhejiang Yongkang in China |
| Model No: | MTLATV-002AL-200CC |
| Minimum Order: | one 20'FCL |
| Supply Ability: | 10000pcs/month |
| Package: | carton with steel frame |
| Delivery Time: | T/T, |
