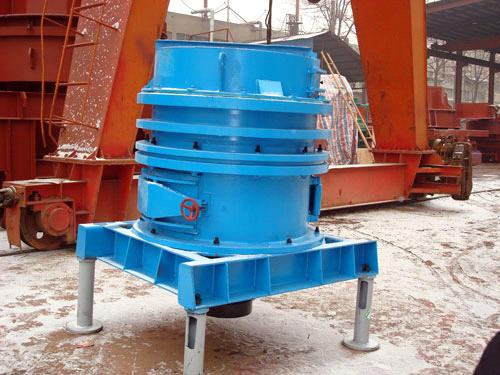

Coarse Powder Mill (MSB1004)

Detailed Product Description

Main Performance Parameters:

Name	Parameter	Remark
Model	MSB1004
Roller quantity	4pcs
Max. Feeding size	< 30 mm	Too hard material< 20mm
Product size	70-90%< 2mm	Adjustable, check below
Capacity	8-15ton/hour	Relative to average size and hardness of feeding material
Main motor power	37-45 kW	Use small motor if use fine material and want low capacity
Main motor model	Y2-225M-4	Installation model V6
Overall size（L×W×H）	1.87×1.5×2. 58(m）	Including main motor, decelerator and main unit
Largest single pc weight	900kg
Total weight（excluding electricity control cabinet）	8ton	Decelerator weight 1.7 tons

Place of Origin:	China\|
Model No:	MSB1004
Brand Name:	Break-day
Package:	Container, Nude packs or In Bulk
Delivery Time:	To Consult F2F
