Screen Plant

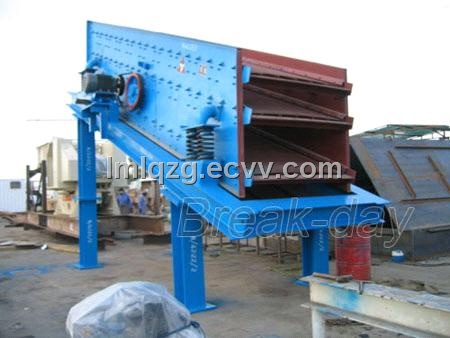

YZS Vibrating screen is used to separate the stuff and composed of main frame, screen web, electric motor, eccentric bock, rubber spring, coupler and so on .We will offer suitable type according to your requirements.
YZS vibrating screen is widely used for classification in mining,construction material,transportation,energy,ect.

YZS Vibrating screen Features: Simple and reliable.
1.No transmission of screen panels.
2.Easy change of screen plates.
3.High screening capacity.
4.Rigid and vibrating resistance screen body.
5.High durability.

Models: 2YZS1548, 3YZS1548, 2YZS1848, 3YZS1848, 2YZS1860, 3YZS1860, 2YZS2160, 3YZS2160, 2YZS2460
Screen size(mm):4800×1500~6000×2400
NO. of layer:2 or 3
Screen mesh(mm):3~150
Max. feed size(mm):400
Handling capacity(t/h):30~810
Motor power(kw):15~37
Vibrating frequency(r/min):730~870
Double swing(mm):5~9
