Chongqing Changye Jingtian ATV Manufacturing Co., Ltd.

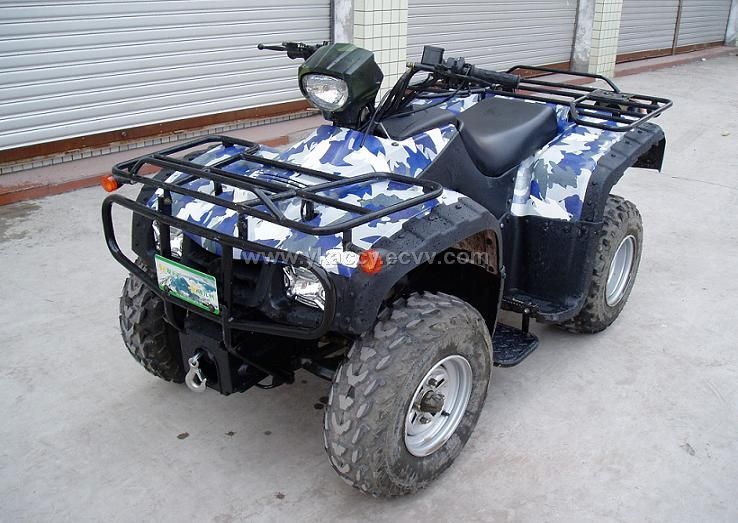

CHY200L-B (Dinosaur)

Detailed Product Description

ENGINE:
Engine Type: standing, single-tank, 4-stroke, manual clutch
Bore and Stroke: 63 x 63
Ignition: C.D.I
Starter: Electric recoil backup
Piston Displacement: 196(ml)
DRIVE TRAIN:
Graded System: speed adjustment, inside reverse set
Driveline: chain drive
CHASSIS/SUSPENSION/BRAKES
Front Suspension: double arm
Front / Rear Brakes: drum/disc
Front Tires: 19x7-8
Rear Tires: 18x9..5-8
Maximum Power (kw/r/min): 10/7500
Maximum Torque: 13/5500
DIMENSIONS:
Length/ Width/ Height: 1600x 900 x 930(mm)
Axle Base: 1080(mm)
Wheel Base (Front/Rear): 715/640(mm)
Dry Weight: 118(kg)
Max Load: 165(kg)
Seat Height: 800(mm)
Compression Ratio: 9.1:1
Minimum Turning Radius: 2400(mm)
Minimum Ground Clearance: 113(mm)
QTY/Container: 20units/20? 42units/40?
OTHER:
Battery: 12V-9AH
Fuel Tank Capacity: 4L
Place of Origin:Chongqing Chongqing in China
Model No:CHY200L-B (Dinosaur)
Brand Name:CHY
