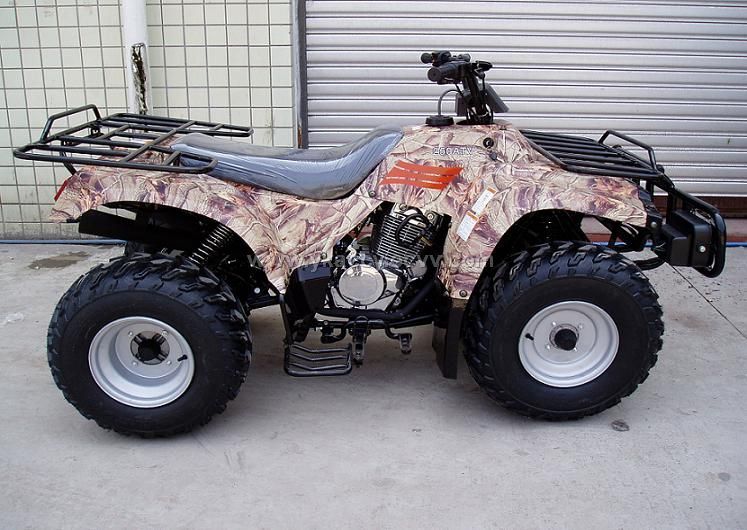

CHY250Z-(A) (Suv)

Detailed Product Description

ENGINE:
Engine Type: standing single-tank, 4-stroke, manual clutch
Bore and Stroke: 71 x 58
Ignition: C.D.I
Starter: Electric recoil backup
Piston Displacement: 233.9(ml)
DRIVE TRAIN:
Graded System: speed adjustment
Driveline: shaft drive
CHASSIS/SUSPENSION/BRAKES
Front Suspension: single arm
Front / Rear Brakes: drum/drum
Front Tires: 23x7-10
Rear Tires: 22x10-10
Maximum Power (kw/r/min): 10/7000
Maximum Torque: 15/5500
DIMENSIONS:
Length/Width/Height: 1940 x1050 x 1160(mm)
Axle Base: 1160(mm)
Wheel Base (Front/Rear): 880/770(mm)
Dry Weight: 220(kg)
Max Load: 165(kg)
Seat Height: 810(mm)
Compression Ratio: 8.7:1
Minimum Turning Radius: 2900(mm)
Minimum Ground Clearance: 155(mm)
QTY/Container: 20units/20? 42units/40?
OTHER:
Battery: 12V-14AH
Fuel Tank Capacity: 12L
