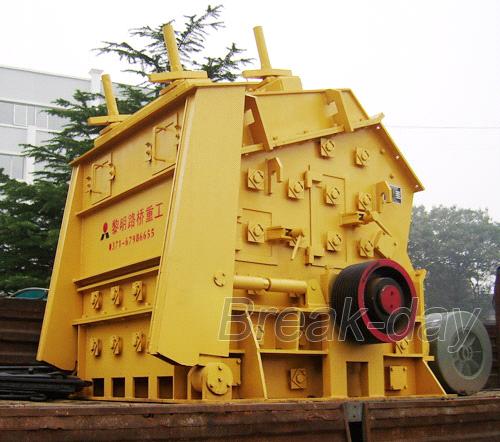

Impact Breaker (PF-1210)

Impact Crusher is mainly used to crush many kinds of large, medium, small materials such as rock or stone whose side length is less than 500mm, and compression resistance should not be more than 350Mpa. The impact crusher is widely used in hydroelectricity, highway, artificial rock, stone and sand, building material, etc.

Working Principle of Impact Crusher:
When the impact crusher works, the motor drives the rotor rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process will not stop till the material are crushed to the required size and then discharged from outlet.

The main features of impact crusher:
1.Connected with locking sleeve assembly.
2.Final product with cubical shape.
3.The blow bar with high chrome.
4.Easy maintenance. Hydraulic or hand opening.
5.Reliable operation. Impact plate with a special shape.

Model: PF1315
Feed Opening(mm):860x1520
Max Feed Size(mm):<500
Capacity(t/h):120-250
Powder(kw):180-260
Weight:19(t)

Any change of technical data shall not be advised additionally.
