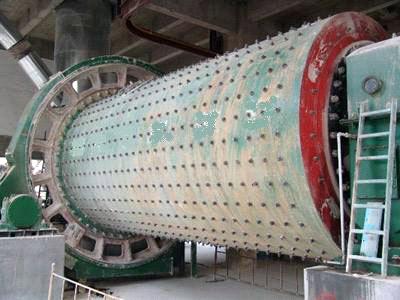

Ball Mill , grinder

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model:2200×5500
Speed of bucket (r/min):21
Weight of ball (t):30
Size of feed opening (mm):25
Size of outputting feed (mm):0.075-0.4
Capacit (t/h):10-22
Power (Kw):370



To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.



Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs. Our Ball Mills have been used to grind glass, powder food products, creat custom varnishes, make ceramic glaze, powder various chemicals, and make Black Powder.
