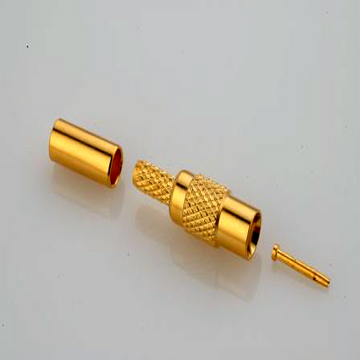

MCX connector

Detailed Product Description

Specifications:
1) Temperature range: -65 - +165?
2) Impedance: 50Ω, 75Ω
3) Frequency range: DC - 6 GHz
4) Working voltage: 250V (50Ω), 170V (75Ω)
5) Withstand voltage: 750V (50Ω), 250V (75Ω)
6) Contact resistance:
  a) Center contact: ≤5 mΩ
  b) Outer contact: ≤2.5mΩ
7) Insulation resistance: ≥1,000mΩ
8) VSWR:
  a) Straight: ≤1.15
  b) Right angle: ≤1.25
9) Durability (mating): ≥500 times
Applicable Standards:
1)ISO9001&ISO14001
2)CECC 22340
3)IEC 61169-36
