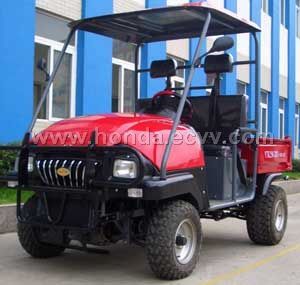

EEC UTV(250cc, new model)

Detailed Product Description

1)Dimension(LxWxH)2500x1400x1740mm
2)Proper mass of empty vehicleN.W 400kgs ; G.W 450kgs
3)Packing size2300x1260x920mm
4)Quantities per container20 FT FCL 8 SETS;40 FT FCL 18 SETS
5)Wheelbase1740mm
6)Front track1120mm
7)Rear track1060mm
8)Ground clearance180mm
9)Suspension systemIndependent suspension both front and rear.
10)Traction systemRear Axle-Driven
11)Seat height920mm
12)Front tire21x7-8
13)Rear tire22x10-10
14)Other fitting: winch
15)Engine TypeSingle cylinder forced water-cooled 4 stroke
16)Engine displacement244ml
17)Engine corrected compression ratio10: 1
18)Engine output power10.5kw/6000rpm
19)Engine maximum torque17.6N.m/5500r/min
20)Engine startingElectric
21)Engine IgnitionCDI
22)Engine lubricationForce & Splash
23)Engine Automatic CVT
24)Spark plugC7HSA (NGK)
25)Fuel brandRQ-90(Leadless)
26)Lubricate oil brandSAE10W-40
27)Carrier box load180kgs
28)Fuel tank18L
29)Starting5s
30)Climbing22o
31)Highest speed55km/h
32)Battery12V36AH
33)Head lamp12V21W
34)Tail lamp12V21/5W
35)Horn12V5W
36)Fuse20A
37)Front and rear brakeHydraulic disc/right foot control
38)Brake track< 7m.30km/h
39)Windlass load600kgs
40)Hydraulic mandril of Carrier box500kgs
