energy meter

Detailed Product Description

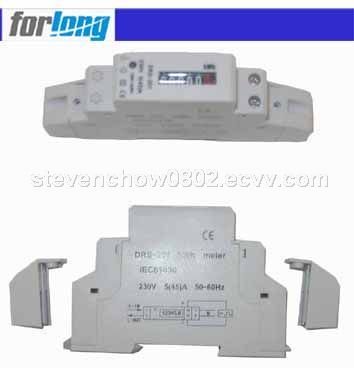

Product Type: DRS-201
Product Specs: 5(25)A 5(32)A 5(45)A
Technical Index: Electric characteristic
Voltage: 230V +/-30%
Current: 5(32)A
Accurancy class: 1.0 2.0
Standard: IEC1036
Frequency:  50/60Hz
Impulse contant: 1000imp/kWh
Display mode:  LCD 5+2 = 99999.99kWh
Counter 5+1 = 99999.9kWh
Power consumption:  VA ≤0.4W
Starting current: 0.004Ib
Temperature range: -20?5
Average value of year: 75%,short time value:95%
Impulse connection:
Voltage 12-27V, current?7mA, max length of lead:20m
Impulse width=90s, connect to terminal 5&6
Limits of values: max 60VDC, max 50mA

Product Description: Static Single-Phase Electric Energy Meter uses advanced special recording integrated circuit with high precision DRS-201 Mainly used in AC single-phase watt-hour with its recording frequency of 50Hz, it is highly accurate, reliable, durable, low power consumptive, without reversion, creep-proof, anti-tampering, bilateral recording with strong overloading capability. It conforms to the related requirements of GB/T17215-1998. /IEC1036
