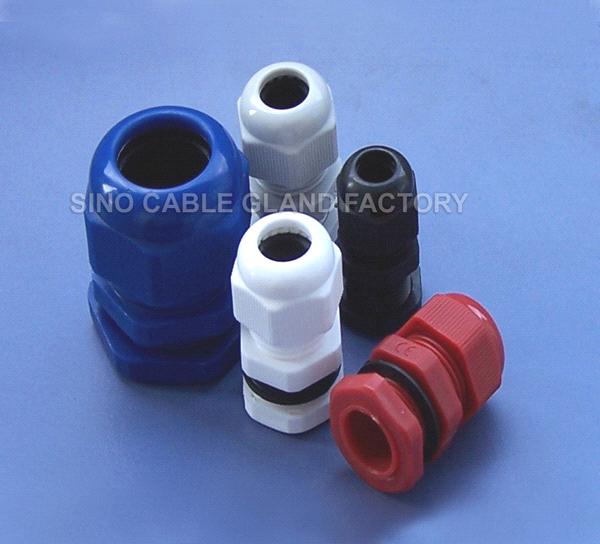

Polyamide Cable Gland with PG Thread (Kabelgenomforing)

Polyamide Cable Gland.

Material: Nut, locknut and body are made from ul-certified nylon 66,94v-2. Seal and Washer in NBR or EPDM.

Standard colors: Light-grey RAL7035, black RAL9005, other colors are available on request.

Protection degree: IP68 (used with washer within its cable range).

Operation temperature: Static:-40 ^oC to 100 ^oC, short-term: 120^oC. Dynamic:-20^oC to 80^oC, short-term:100 ^oC.

Specifications: Pg7, pg9, pg11, pg13.5, pg16, pg19, pg21, pg25, pg29, pg36, pg42, pg48, pg63.

Installation: With special design and good tensile strength, cables can be directly ed the hole of the same size thread and then fix it with the locknut.

Application: Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the seal and clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.
