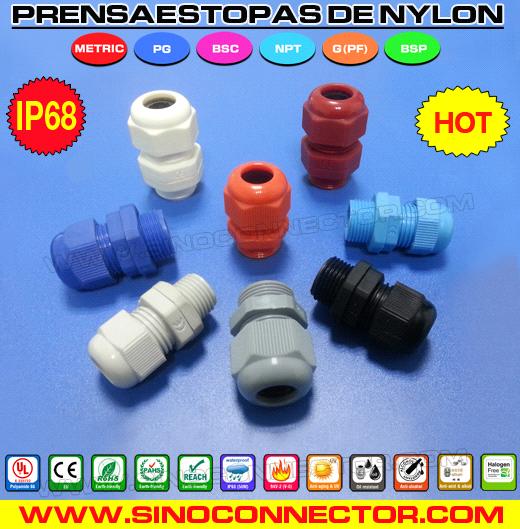

Plastic Nylon Liquidtight Cable Glands / Presetupe DIN Plastic / Poliamidne Kabelske Uvodnice

Supply Ability:	2,000,000 Piece(s) per Month
Shipping:	by sea, by air or by courier
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Standard export packing:100pcs/bag or 100pcs/box

Quick Details

Material: Nylon
Size: all sizes available
Protection Level: IP68
Brand Name: Sino Cable Gland Factory
Color: grey, black
Model Number: PG7~PG48, M12x1.5 ~ M75x2

Specifications

(1) Material:
* Nut, Locknut & Body: 100% new PA 66,94V-2 approved by UL.
* Hermetic Seal & O-ring: NBR, EPDM or natural rubber.

(2) Standard Colors:
Light-grey RAL7035, black RAL9005 (other colors can be customized: blue, green, yellow, red, dark-grey, milk,etc).

(3) Claw:
the claws & seals of excellent design can hold cables firmly and have wider cable ranges.

(4) Protection Degree:
IP68 (used with O-ring within its cable range).

(5) Operation Temperature:
Ambient temperature: Quiescent state:-40 oC to 100 oC, short time to: 120oC. Dynamic:-20oC to 80oC, short time to:100 oC.

(6) Certificates:
CE, ROHS, PAHS, REACH, SGS, IP68.

(7) Features:
Waterproof, acid & oil resistant, UV resistant, anti-aging, durable, good performance, long-life.

(8) Installation:
with special design and good tensile strength, cables can be directly inserted into the hole of the same size thread and then fix it with the Locknut.

(9) Applications:
Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the Seal and Clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.

(10) Specifications:
* PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48, PG63.
* M12x1.5, M14x1.5, M16x1.5, M20x1.5, M22x1.5, M25x1.5, M27x1.5, M32x1.5, M40x1.5, M50x1.5, M63x1.5, M75x2.

Plastic Nylon Liquidtight Cable Glands Presetupe DIN plastic Poliamidne kabelske uvodnice
