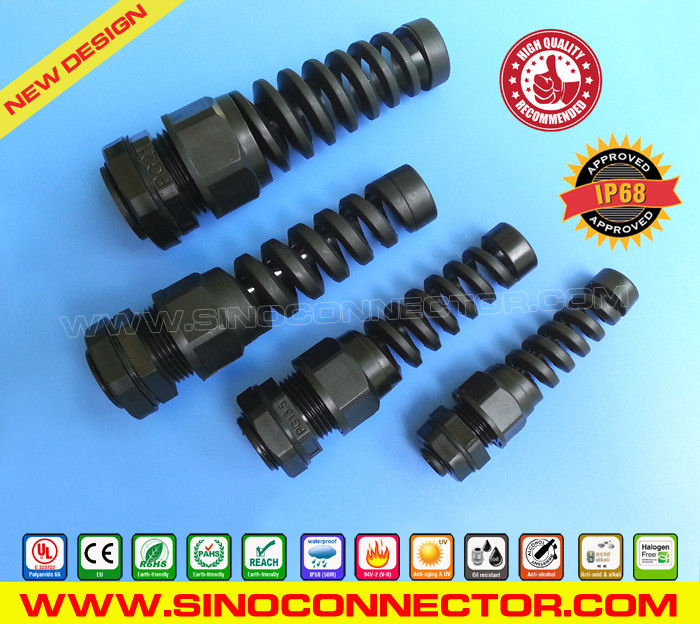

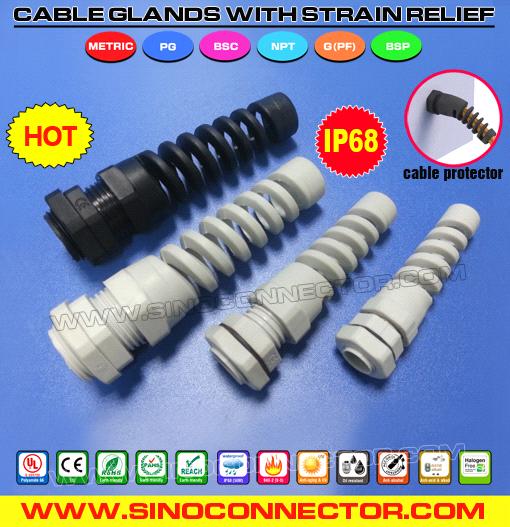

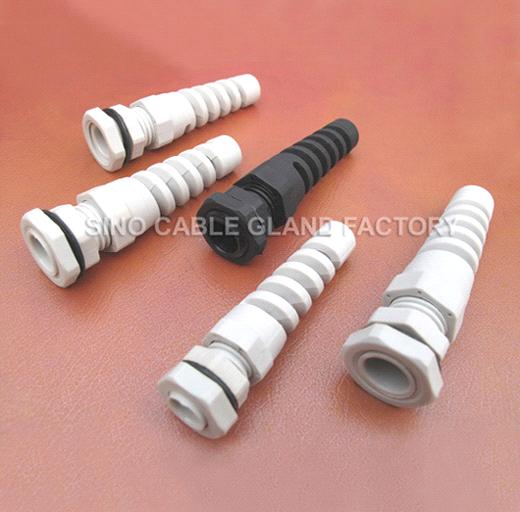

PG & M Type Nylon Cable Gland with Strain Relief (Pressacavo poliammide )

Nylon Cable Gland with Strain Relief.

Material: Nut, locknut and body are made from ul-certified nylon 66,94v-2. Seal and gasket from NBR or EPDM or Natural Rubber.

Standard colors: Grey, black, other colors are available on request.

Protection degree: IP68 (used with Washer within its cable range).

Operation temperature: - 40 centigrades to 100 centigrades, maximum instantaneous temperature up to 120 centigrades.

Specifications: PG7, PG9, PG11, PG13.5, PG16, PG19,PG21 & M12x1.5,M16x1.5,M18x1.5,M20x1.5,M22x1.5,M25x1.5,M27x1.5.

 Installation: With special design and good tensile strength, cables can be directly ed the hole of the same size thread and then fix it with the locknut.

Application: Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the seal and clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.
