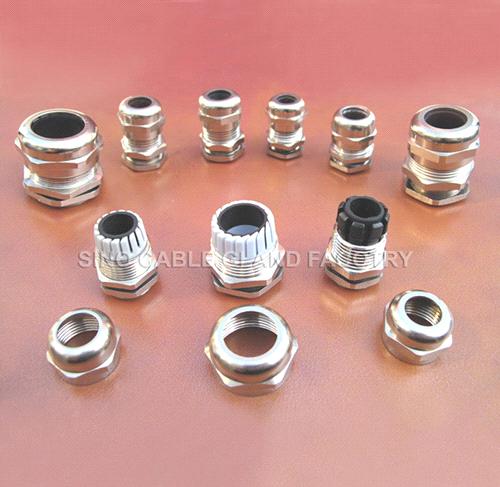

Metal cable gland. Nickel-plated Brass Cable Gland.
Material: Nut, Locknut and Body are made from Nickel-plated brass. Seal and O-ring are made from NBR or EPDM or Natural Rubber.
Protection Degree: IP68 (used with O-ring within its cable range).
Operation Temperature: - 40 centigrades to 100 centigrades, maximum instantaneous temperature up to 120 centigrades.
Installation: With special design and good tensile strength, cables can be directly ed the hole of the same size thread and then fix it with the Locknut.
Application: Used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel and other instruments. Innovative design for the Seal and Clamp, wide clamping range, strong resistence against the tensile strength and thus it can protect cables effectively.
Specifications:
PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48.
M12x1.5,M16x1.5,M18x1.5,M20x1.5,M22x1.5,M25x1.5,M32x1.5,M40x1.5,M50x1.5,M63x1.5.
NPT3/8",NPT1/2",NPT3/4",NPT1".
| Place of Origin: | Zhejiang in China |
| Model No: | PG7~PG48 *M12~M63 * NPT3/8 |
| Brand Name: | SINO |
| material: | Nickel-plated brass |
| FOB Price: | 0.45-10.60 USD Ningbo or Shanghai |
| Other Price Terms: | C&F,CIF |
| Payment Terms: | L/C,T/T(Bank Transfer),Western Union, |
| Minimum Order: | Piece/Pieces 1000 |
| Supply Ability: | Piece/Pieces|100000|Month |
| Package: | Standard export packing:100pcs/bag |
| Delivery Time: | 10 days |
