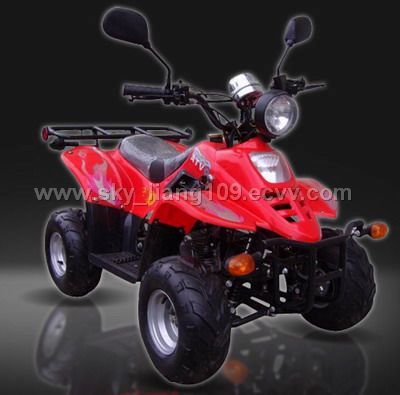

ATV

Detailed Product Description

SO-MA008
Specification:
1) Engine type:
a) 49cc, 2-stroke, single cylinder, air-cooled
b) 50cc, 4-stroke, single cylinder, air-cooled
2) Transmission mode: chain
3) Start way: electric recoil backup / pull start
4) Max. speed: 25km/h
5) Wheel bases: 700mm (27.56")
6) Distance between wheels:
a) Front: 470mm (18.50")
b) Rear: 485mm (19.09")
7) Tires: a) Front tire: 145/70-6
b) Rear tire: 145/70-6
8) Max. load capacity: 90kg (441lbs)
9) Brakes (front / rear): hydraulic disk brake
10) Ignition type: CDI
11) Overall dimensions: 1,100 x 640 x 780mm, 43.30 x 25.20 x 30.71"
Packing:
Carton dimensions:
1,150 x 680 x 660mm,
45.28 x 26.77 x 25.98"
N.W.: 51kg (112lbs)
Conveyance:
Qty/20' FCL: 48pcs
Qty/40' HQ: 136pcs
