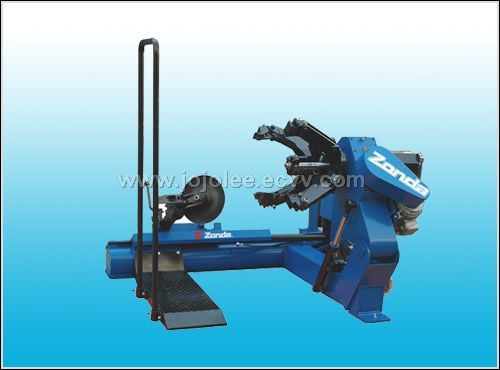

TIRE CHANGER

Detailed Product Description

Features:
1) Semi-automatic tyre changer with swinging arm for rapid head positioning
to the rim
2) Integrated demounting, mounting and inflating the tyres, wide rim diameter
capacity
3) Self-centering function
4) High alloy mounting head with optimized profiling and good wearing capacity
5) Double clamping cylinders ensure accurate centering and reliable clamping
6) With adjustable opening, bead breaker suitable for various size tyres
7) The tyre lever and lubricant box within the reach of operator
8) Equipped with traditional inflating gun
9) Nylon protector for mounting head and clamping jaws
10) Manual locking of the horizontal and vertical head holder arm
11) Round turntable
Specifications:
1) Rim clamping diameter (outer): 10" - 19"
2) Rim width: 3" - 12"
3) Max. wheel diameter: 1,000mm
4) Working pressure: 6 - 8Bar
5) Bead breaker force: 2,500kgf
6) Turntable: 5.5rpm
7) Motor power: 1.1/0.75kW
8) Weight: 212kg

Place of Origin:	Jiangsu Yancheng in China
Model No:	ZD-C2600
Brand Name:	Zonda
Other Price Terms:	000
Minimum Order:	1set
Supply Ability:	300 sets/month
Package:	steel or wooden packing
Delivery Time:	20
