Product Description

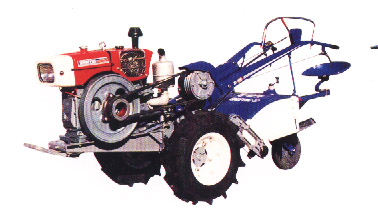

DF-12 power tiller ( also can be called walking tractor, hand tractor or two wheel tractor) can be used as a means of traction as well as PTO power transmission. The tractor is very suitable for use in paddy field, small dry fields, orchards, vegetable gardens of hilly land with small inclination. It can be used for ploughing, rotary cultivating, harrowing in paddy field, harvesting, transportation, etc., if suitable implements or accessories are attached. In addition, the tractor can be extensively used as a stationary power sattion fro small scale drainage and irrigation, spraying, grain threshing, cottons ginning, flour milling, fodder cutting, etc.
specifications
Type: Pull and drive
Overall dimensions (L*W*H) (mm): 2680*960*1250
Wheel tread (mm): 580,640,740,800
Net weight (kg): 350
Operation weight (kg): 396
Ground clearance (mm): 182
V-belt: B1880
Clutch type: 2-disk, constant-contact, friction type
Gearbox: gear type?(3+1) ?2 high/low range
Final drive: Two-step gear reduction
Matched engine: S195N/S1100N
Power (H.P.): 12/15
Engine rated speed (r/min): 2000
Fuel combustion (g/kw-hr): ?265.2/?263.8
Rated speed (km/h): ?1.4;?2.5;?4.1?5.3;?9.4;?15.3;;R?1.0 R?.3.8
Drive wheel tyre: 6.00-12 four ply rubber tyre
Tyre pressure (kg/cm?): 1.4
ROTARY TILLER
Overall dimensions: 1170?796?780mm
Rotary tillage radius: 225mm
Tilling width: 600mm
Work efficiency: 1333.33~1999.99m2/h
| Place of Origin: | Shandong Linyi in China |
| Model No: | DF-12 |
| Brand Name: | MINGXIN |
