Walking Tractor / Power Tiller

Detailed Product Description

Product Description

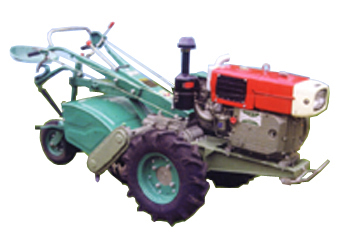

The GN121 power tiller (also can be called as walking tractor, hand tractor or two wheel tractor) is of dual-function type that can be used as a means of traction as well as drive. It is very suitable for use in paddy fields, dry fields, orchards, vegetablie gardens and hilly land with a little inclination. It can be used for ploughing, rototilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fedder cutting and so on.
Specifications
Overall dimensions (mm): 2950*980*1240 (L*W*H)
Min. distance from the ground (mm): 210 mm
Weight of Chassis (kg): 215 kg
Weight in use (Chassis, oil, Plough) (kg): 503 kg
Rotation speed of Engine: 2000 r/min
Theoretical Speeds (Km/h) :
Forward 1/1.39 2/2.47 3/4.15 4/5.14 5/9.12 6/15.30 Reverse 11.10 2/4.10
Type of Clutch: Double Friction Flat of Constant Combination
Type of Steering gear: meshing sleeve
Type of Brake: disk
Triangle belt: B1956 3
Capacity of Lubrication oil (L): 6.0 L
Type of tyre: 6PR 6.00+12(0.137-0.196)
