Product Description

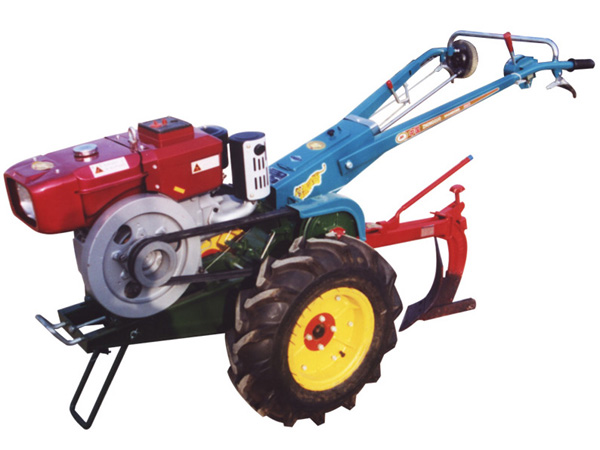

SH101-1 walking tractor (also can be called as power tiller, hand tractor or two wheel tractor) has both hauling and driving a ability.It's powered by the diesel engine of 185, 190 or 192 types, Provied with appropriate agriculturial machinery,it can do many work,such as ploughing, harvesting, seeding, threshing prain and pumping water in dig farm land.It also can haul a trailer for short-distance transport. Especially, it has evident superiority when it is working in hard farm.
Specifications
Type: Pull and drive
Overall dimensions (L*W*H) (mm): 2170*845*1150
Wheel tread (mm): 680-740 (infinitely variable control)
Net weight (kg): 270
Operation weight (kg): 340 (with oil, water, ballast and tools)
Ground clearance (mm): 210
V-belt: Two pieces of B1800 V-belt
Clutch type:1-disk, dry type, constant-contact, friction type
Gearbox:(3+1) ?2 compound type with cylinder gear transmission
Final drive: single grade, spur cylinder gear transmission
Matched engine: SH185N-2/SH190N-2
Power (Kw): 5.88/7.00
Engine rated speed (r/min): 2200
Fuel combustion (g/kw.h): ?281.5/?280.2
Rated speed (km/h): ?1.75;?2.72;?4.40?7.09;?11.09;?17.82;;R?1.35 R?.5.45
Drive wheel tyre: 6.00-12 (GB1192-82)
Tyre pressure (kgf/cm?): 1.4-2.0
Shipping data: one set (including rotary tiller) is packed in one wooden case, 24 sets can be put in one 20' contaienr
| Place of Origin: | Shandong Linyi in China |
| Model No: | MX101-1 |
| Brand Name: | MINGXIN |
