Product Description
Characteristics:

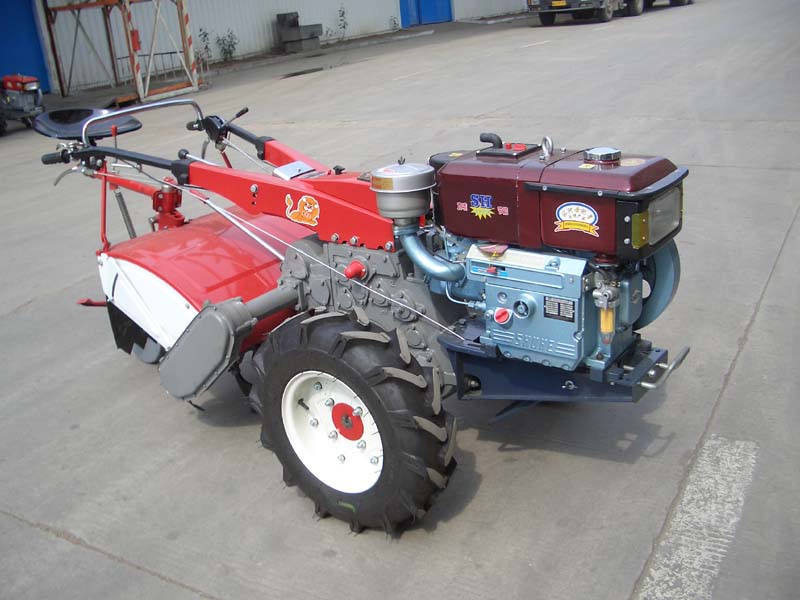

1. SH101SX walking tractor (also can be called as power tiller, hand tractor or two wheel tractor) has both traction and driving ability. It is used in paddy field and dry farm of pain, mountain crea and hills with appropriate agriculturial machinates, it can do many work, such as ploughing, whirl tilling, raking, seeding, transporting and spraying pesticide. It can be used as fixed power. It is superior to others when it works. at harder ground.
2. The range of its necess ary power is so wide that it can fit with 190, 192, 195 moters according to different requirements.
3. With power export shaft, it makes the range of use more wide.
Specifications
Type: Driving and traction
Rated traction: 1700N
Max. rotation of PTO shaft: 1230r/min.
Wheel tread: 740-800mm
Min. ground clearance: 223mm
Min. turning radius: 710mm
Construction mass: 286kg
Min. application mass: 396kg
Hand rest handle: adjustable
Tyre: 6.00-12 four-ply "^" design
Tyre pressure: 100-120kPa for field operation; 180-200kPa for transport operation
Rated loading capacity of trailer: 1000kg
Gears: ?1.9 ?2.9 ?4.33 ?7.78 ?11.96 ?17.87 R?1.49 R?6.16
Diesel to clutch: two B1850mm V-belts
Clutch: single disk constant-mesh friction disc
Transmission: constant-mesh spur-gear & sliding gear (3+1)*2 builtup type
Steering control: dog-engaged positive clutch
Final drive: two-stage reduction spur-gear
Brake: dry disc friction type
Traction frame opening: 95
Ground clearance of lower bearing face: 370mm
Traction pin diameter: ?20mm
Overall dimensions (L*W*H): 2130*940*1090mm
Shipping date: one set (including the rotary tiller) packed in one wooden case, and 20 sets can be put in one 20' container
| Place of Origin: | Shandong Linyi in China |
| Model No: | MX101 |
| Brand Name: | MINGXIN |
