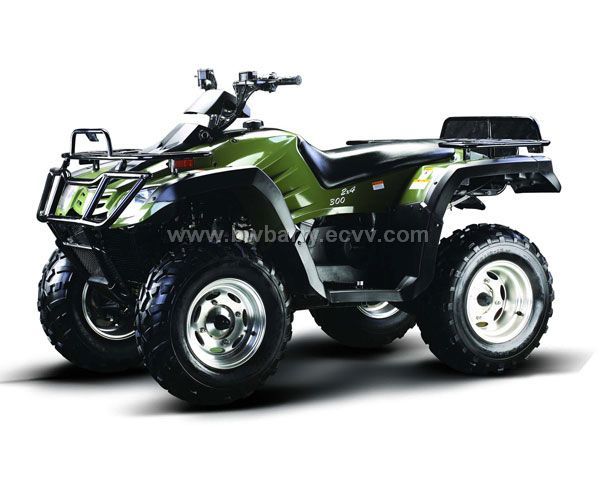

NT-ATV300

Detailed Product Description

ENGINE TYPE:Single cylinder 4 Stroke Water cooled, CVT
DISPLACEMENT:300CC
Bore * Stroke:72.5mm*66.8mm
MAX. POWER (KW/rpm):13.5kw/6000r/min
MAX. TORQUE (Nm/rpm):22N.M/5000r/min
MAX. SPEED:70km/h
Clutch:auto
WHEELBASE (mm):1271mm
SEAT HEIGHT (mm):895mm
GROUND CLEARANCE:183mm
NET WEIGHT (kgs/lbs):267kgs
COMPRESSION RATI10.3:1
CARBURETOR:CVK052
LUBRICATE:Seperated&pressure
AIR FILTER TYPE:Dry Air filter Net
SPARK PLUG:A7RTC
STARTING:T.C.I Electric
GEARSHIFT:Forward (H/M/L) and Return
TRANSMISSION:Shaft
BRAKE FRONT:Front double hydraulic disc brake
BRAKE REAR:Rear double hydraulic disc brake
BRAKE DISTANCE:<=15m
FRONT SUSPENSION :Double Wishbone
REAR SUSPENSION :Single Wishbone
SHOCK ABSORBER (F):Double Wishbone
SHOCK ABSORBER (R):Single Wishbone
BATTERY:12V-14AH
LUBR. CAPACITY:1.6L
FUEL:93#
FUEL CAPACITY :14.5L
TURNING RADIUS:3280mm
MAX. LOAD (kgs/lbs):156kgs
FRONT TIRE:25*8-12
REAR TIRE :25*10-12
OVERALL (L/W/H):2016*1180*1237mm
CARTONE SIZE (L/W/H):2280*1290*870mm
PACKAGE 20"/40" (SET):8pcs/27pcs
