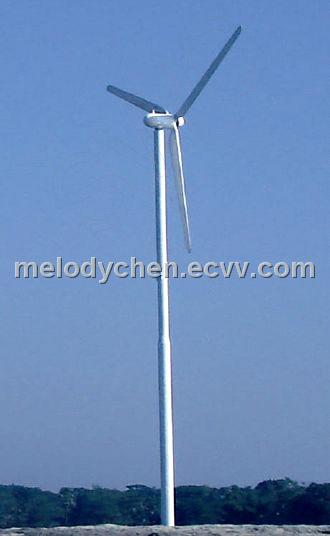

Horizontal Wind Turbine (20KW)

FD12-20kw-40-3 (20KW) Type: 3 Blade Upwind Rotor Diameter: 12.0 m Start-up

Wind Speed: 2.5 m/s (5.6 mph) Cut-in Wind Speed: 3 m/s (6.7mph)

Rated Wind Speed: 12m/s (26.8mph)

Rated Power: 20k Watts Maximum Power: ~ 25k Watts Cut-Out Wind Speed: 15m/s(33.5mph) Timing manner: automatically adjust the windward angle Overspeed Protection: AutoFurl Temperature Range: -40 to +60 Deg. C (-40 to +140 Deg. F) Generator: Permanent Magnet Alternator Output Form: 360VDC Nominal
