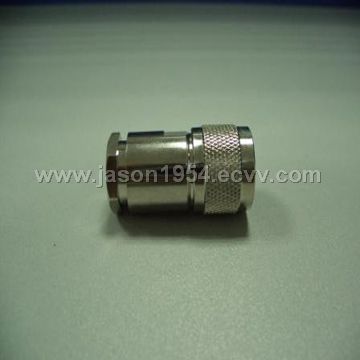

N type connector

Detailed Product Description

Specifications:
1) Temperature range: -65 - +165癈 (PE cable -55 - +85癈)
2) Vibration: MIL-STD-202, Method 213
3) Impedance: 50Ω
4) Frequency range: DC -11GHz
5) Working voltage: 1,000V max
6) Withstand voltage: 2,500V rms
7) Contact resistance:
  a) Center contact: ≤1mΩ
  b) Outer contact: ≤1mΩ
8) Insulation resistance: ≥5,000mΩ
9) VSWR:
  a) Straight: ≤1.15
  b) Right angle: ≤ 1.25
10) Durability (mating): ≥500 times
Applicable Standards:
1)ISO9001&ISO14001
2)MIL-C-39012
3) CECC 22210
4) IEC 60169-16
Place of Origin:China Shenzhen in China
Model No:N type for LMR400
Brand Name:Jingchengnuo
