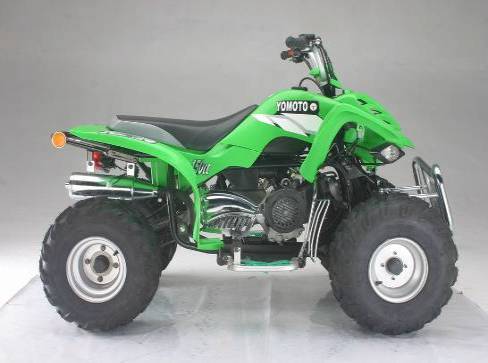

ATV150STR

Detailed Product Description

Key Features: Fully Automatic, GY6 150cc Engine,CVT Drive with Reverse Gear, KEIHIN Carb, F 19'/ R 18' F.E Tires, "Y-Mask" Front Bumper, Front Drum/Rear Disc Brake.
Available Color: Suzuki Red, Honda Blue, Kawasaki Green, Yellow, Black
YMT-ATV150STR MAIN TECHNICAL DATA
Engine type: 4 stroke, air cooled, GY6 150CC
Transmission System V-Belt CVT Drive with Reverse Gear
Bore x Stroke (mm) 52.4 x 57.8
Piston Displacement (ml) 147
Maximum Power (Kw/r/min) 5.5 /8000
Maximum Torque (N.m/r/min) 7.5 / 5750
Starting System Electric /kick Starter
Transmission 4 speed, Semi Automatic
Seat Height (mm) 730
Min Turning radius (mm) 2400
Ground Clearance (mm) 160
Brake (Front/Rear) Drum/Disk
Tyre, Front 19 x 7 -8 /2.9 Psi
Tyre, Rear 18 x 9.5 -8/2.9Psi
Ignition Type CDI
Fuel Tank Capacity (L) 7.8
Front Suspension Independent, Telescopic Arm
Rear Suspension Monoshock Swing Arm
Parking Brake Mechanical Lock
Battery 12V-9Ah
Max Load Capacity (kg) 95
Engine Oil Capacity (L) 0.9
Gear oil Capacity (L) 0.11
Dry Weight (kg) 125
Rider Capacity 1 person
Rear Track (mm) 675
Front Track (mm) 670
Wheel Base 1040
Overall Height (mm) 1015
Lubrication Press flash
Overall Length (mm) 1600
Overall Width (mm) 860
Compression Ratio 9.2:1
Cylinder arrangement Single cylinder
Loading Quantity 20? 32 Cartons, 40'HQ= 66 Cartons
