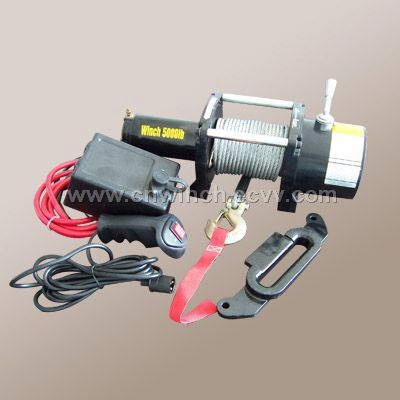

Electric Winch DF5000P

Voltage: 12VDC
Rated line pull: 5000 LBS (2268kgs)
Motor: Permanent magnet,1.3kw/1.8hp(12V);1.5kw/2.0hp(24V)
Gear Reduction Ratio: 294:1
Control : Remote switch, 12ft(3.7m) lead
Brake : Dynamic
Drum Size: 2.48"x5.5"(63mmx140mm)
Cable: 1/4"x79'(6.3mmx24m)
Overall Dimensions:
(LxWxH) 18.9"x6.1"x8.5"(481mmx156mmx215mm)
Mounting Bolt Pattern: 6.55"x4.5"(166.4mmx114.3mm)
N.W./G.W.: 26KGS/27KGS
Outer Packing Measurement: 49.5x20.5x40cm(1pc)

Place of Origin:	Zhejiang Ningbo in China
Model No:	DF5000P
Brand Name:	Dongfeng
Minimum Order:	Negotiable
Supply Ability:	5000pcs/month
Package:	CARTON
Delivery Time:	15
