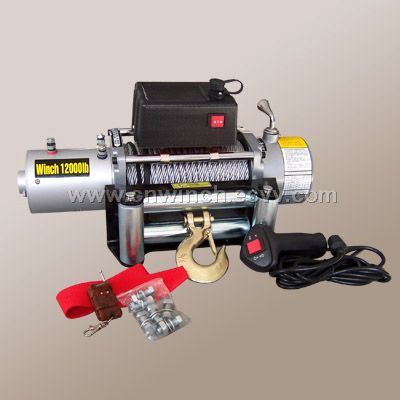

Electric Winch DF12000S3

Detailed Product Description

Single line rated pull: 12000lb(5440kg)
Motor: 6.0hp/4.5kw,Series Wound
Control : Remote Switch, 12ft(3.7m) lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 265:1
Braking Action : Automatic In-The-Drum
Drum size: Diameter 2.52"(64mm) Length 8.82"(224mm)
Cable: 28m of 9.1 mm diameter
Fairlead : 4-Way Roller Fairlead
Battery Leads: 2 gauge, 72"(1.83m)
Finish : Silver Grey
Overall Dimensions:
(LxWxH) 21.3"x6.3"x8.6"(562x160x218mm)
Mounting Bolt Pattern :10.00?.015"x4.50?.010"(254x114.3mm)
N.W./G.W.: 38KGS/42KGS
MEAS: 59x20x39.5cm(1PC)

Place of Origin:	Zhejiang Ningbo in China
Model No:	DF12000S3
Brand Name:	Dongfeng
Minimum Order:	Negotiable
Supply Ability:	5000pcs/month
Package:	CARTON
Delivery Time:	15
