Mica paper tapes for cables

Detailed Product Description

[PRODUCT INTRODUCTION]

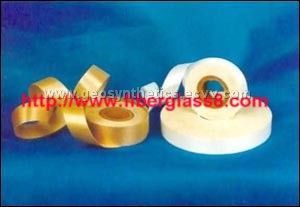

  Mica paper tapes for flame-resistant security cables are flexible mica tapes made of alkali free glass cloth, silicone adhesive and mica paper. The products are used as flame-resistant insulating layers of cables to ensure the cables to work for a definite time after catching fire. The mica tapes are widely used as insulating layers of flame-resistant electric wires and cables for high buildings, railway stations, wharfs, airports, subways, tunnels, metallurgy and petroleum chemical industry. The technical indices of the above mica paper tapes are made according to IECO371-3-8: 1995.They feature superior fire resistant quality and good electrical resistance even at high temperature.
[TYPE STYLE]
  ZD8661S- Phlogopite mica tape no-alkaline glass cloth one-side strength

  ZD8662S- Sythesized mica tape no-alkaline glass cloth one-side strength

  ZD8663D- Mica tape with two side fiber glass cloth or two side mica tape organized

  [DIMENSION]

  Package: Roll or Spool

  Width:From 5-1000mm

  Length:300m,500m,1000m

  Standard cores:52mm,54mm,76mm

  Material:Phlogopite mica paper;silicon resin; non-alkali glass cloth
Place of Origin:Guangdong Shenzhen in China
Model No:ZD8661S
Brand Name:KTYU
Other Price Terms:Free
Minimum Order:500kgs
Supply Ability:200,000kgs/month
Package:Carton
Delivery Time:10
