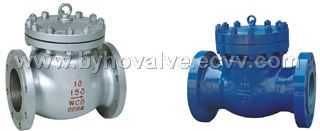

check valve

Features:
1) Design and manufacture standards: API 6D
2) Inspection and test: API 6D
3) Face-to-face: ANSI 16.10 / API 6D
4) Flange connection: ANSIB16.5 / ANSIB16.47
5）Size: 2?- 30"
6) Class: 150 - 2,500lbs
7)Product: cast carbon steel or stainless steel wedge gate valve
8) Parts included: outside screw and yoke, bolted bonnet, rising stem,
solid wedge, renewable seats,13% chrome stainless steel trim
9) Alternative body and trim materials are available
10) Flexible wedge is fitted on standard valves (6 - 12"), and can be
furnished to replace the solid wedge of other sizes
11) Material: WCB, WC6, WC9, LCB, LCC, CF8, CF8M, CF3, and CF3M
12）operated way: handwheel, bevel gear, Pneumatic, Electric
Inner packing:
Plastic package
Outer packing:
Wooden package

Place of Origin:	Zhejiang Wenzhou in China
Model No:	check valve
Brand Name:	BYHO
