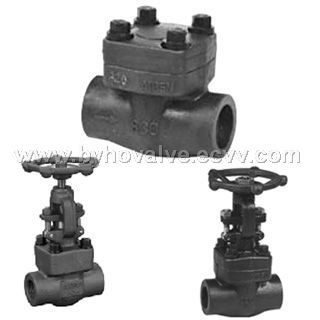

forged steel valves

Features:
1) Design and manufacture: API602
2) Inspection and Test: API598
3) Socket-weld dimension: ASME B16.11
4) End threads dimension: ASME B1.20.1
5) Pressure-temperature rating: ASME B16.34
6) Three bonnet designs:
a) Bolted
b) Welded
c) Pressure seal
7) Three different design configurations:
a) Piston check
b) Ball check
c) Swing check
8) Working pressure: 200 PSI WOG
9) Temperature range: -20 ~ +232癈
10) Materials: A-105, F11, SS 316 and SS 304
11) Sizes: 1/2" - 2"
12) Connection type: SW, NPT, FF
13）Operation: manual, pneumatic, electric, hydraulic and pneumatic-hydraulic
Inner packing:
Plastic package
Outer packing:
Wooden package

Place of Origin:	Zhejiang Wenzhou in China
Model No:	forged steel valves
Brand Name:	BYHO
