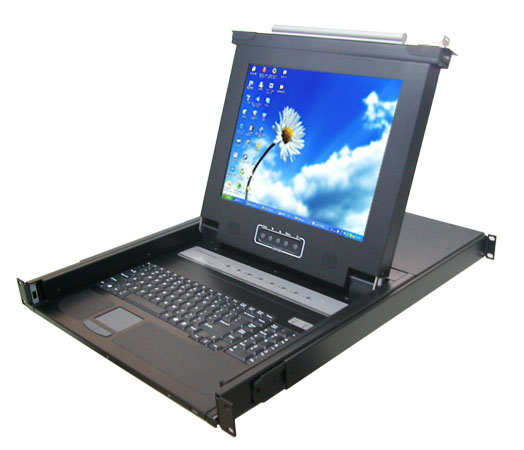

1U Rackmount LCD KVM switch KVM-1501AS
Main Features
1U Rackmount 15" TFT LCD KVM switch
Build in keyboard ( 105 keys ) and Touch pad ,Port selection via Pushbutton, Hotkey and OSD
Integrated KVM console featuring a 15" LCD monitor in 1U high rack mountable Slideaway housing.
Daisy chain up to 31 additional compatible kvm switch units and control up to 512 computers.
DDC emulation of the LCD monitor - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor.
With Key lock
Internal power built in.
Free firmware upgrade
LCD Resolution 15" (1024x768) , support DDC2B
Specification
Function
KVM-1501/08/16
Computer connections
Direct
1/8/16
Maximum
512(via Daisy Chain )
Computer port selection
OSD,Hotkey,Pushbutton
Connector
Firmware upgrade
Mini Din 6 Female(Green)
Power
AC Inlet
Computer ( keyboard / mouse / vga )
SPHD-15 Female (Blue)
Button / Switch
Power Switch
Rock Switch
LCD adjustment
Button
LED Indicator
online
16(Green)
selected
16(Orange)
power
1 (Blue)
Num Lock
1 (Green)
Caps Lock
1 (Green)
Scroll Lock
1 (Green)
Emulation
Keyboard
PS/2
Mouse
Resolution
15" LCD
1024x768 @75HZ;DDC2B
Scan Interval
1~255 sec.
Input Rating
100-240VAC;50/60Hz;1A
Power Consumption
15" LCD
30W
Environment
Operating Temperature
0~40癈
Store Temperature
-20-60癈
Humidity
0-80% RH,NC
Physical Property
Frame
Heavy duty steel
Weight
15" LCD
15.5KG
Dimension(W*H*L)
480*44.4*600mm
LCD
Display Type : 15" XGA TFT LCD
Resolution : 1024?68
Max.color : 16M
Luminance : 250 cd/m2
View Angel : 120?H) , 100?V)
Pixel Pitch : 0.297 x 0.297 mm
Contrast Ratio : 450 : 1
Response Time : 16 ms
Power Consumption : 9.5W
LCD MTBF : 50,000hrs
Ordering Information
KVM-1501AS
1U Rackmount 15" TFT LCD w/1 port KVM switch,w/60w power supply
KVM-1508AS 1U Rackmount 15" TFT LCD w/8 port KVM switch, w/60w power supply
KVM-1516AS 1U Rackmount 15" TFT LCD w/16 port KVM switch, w/60w power supply
| Place of Origin: | China |
| Model No: | KVM-1501 |
| Minimum Order: | 50 PCS |
