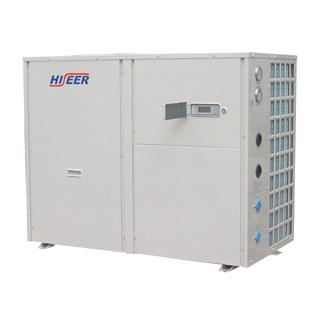

Air source heat pump and chiller
fuction:
1. cooling
2. heating
3. producing domestic hot water
Main parts:
Siemens controller
Hitachi scroll compressor
plate heat exchanger
galvanized sheet cabinet
stainless steel cabinet is optional
Features:
varied heat curve
with all protection like HP, LP, short of water flow , auto-defrosting, anti-freezing, etc
Technical data:
HEAT PUMP LSQ20R2 LSQ25R2 LSQ31R2
Heat output/Power consumption at 7/35° kW 22.2/5.8 28.0/7.6 32.0/8.4
Heat output/Power consumption at 7/45° kW 21.8/6.8 27.2/8.8 31.2/10.0
Heat output/Power consumption at 7/55° kW 21.0/8.8 26.4/11.2 30.0/12.6
Heat output/Power consumption at 2/35° kW 19.0/5.8 24/7.4 26.8/8.4
Heat output/Power consumption at 2/45° kW 18.8/6.8 23.6/8.6 26.4/10.0
Heat output/Power consumption at -7/35° kW 14.6/5.2 18.0/7.2 20.8/8.2
Heat output/Power consumption at -7/45° kW 14.4/6.6 17.8/8.4 20.4/9.6
Cool output/Power consumption at 35/7° kW 20.0/6.6 25.0/8.6 31.0/10.8
Power 380V/3PH/50Hz
Compressor 2×Scroll 2×Scroll 2×Scroll
Condenser Brazed plate heat exchanger
Nominal flow heating medium l/s 1.04 1.3 1.5
Internal pressure drop at nominal flow kPa 27 25 24
Air flow m3/h 6000 10000 10000
Nominal output fan W 440 820 820
Max outgoing heating medium temperature ° 58
Width mm 1300 1300 1300
Depth mm 690 690 690
Height mm 1050 1325 1325
Pipe connector DN40 DN40 DN40
Weight kg 270 280 310
| Place of Origin: | Guangdong in China |
| Model No: | LSQ20 ,LSQ25,LSQ31 |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Minimum Order: | Set/Sets 1 |
| Delivery Time: | 20-25 days |
