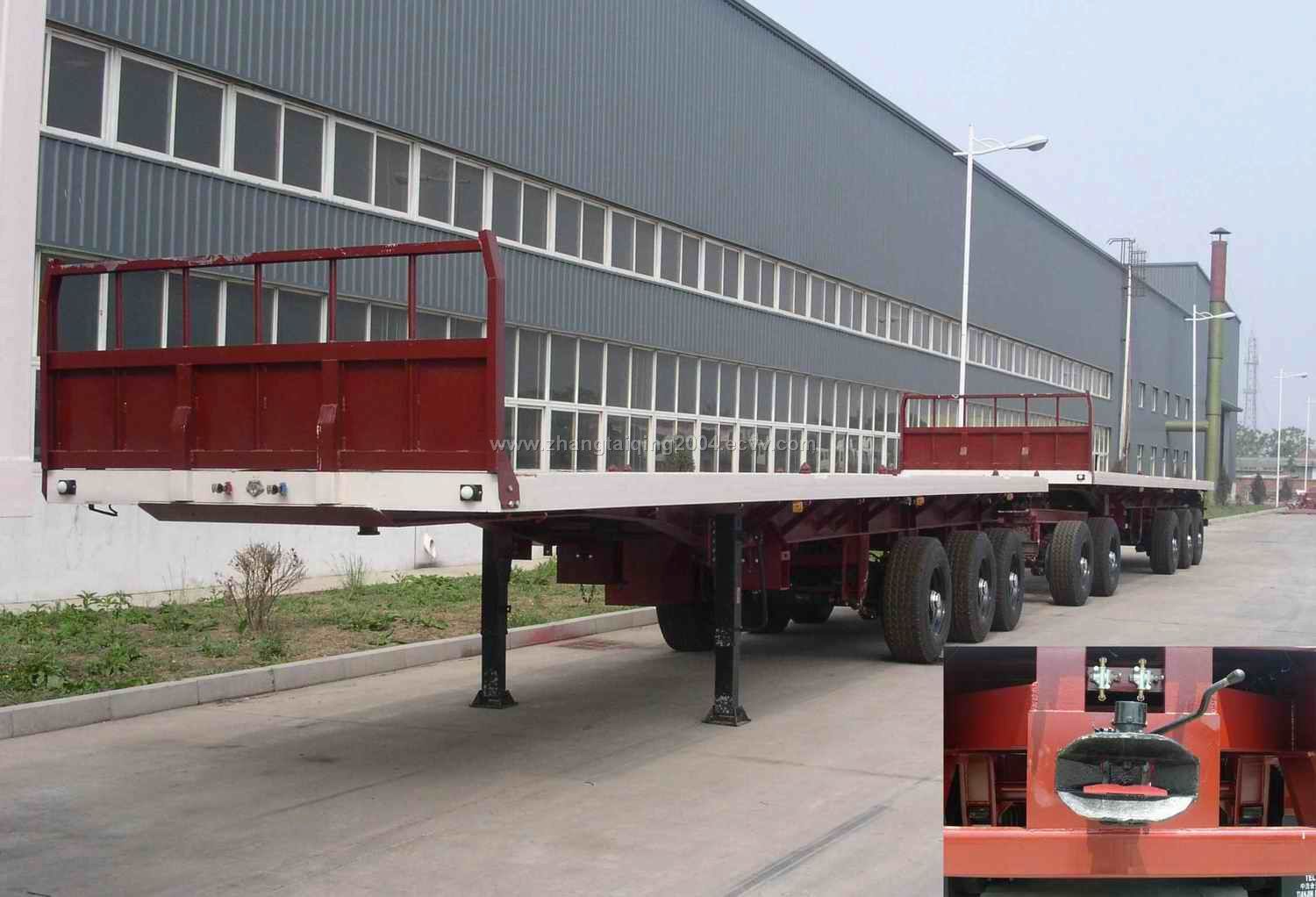

Four-axle 40' Container Semi-trailer

Four-Axle 40' Container Semi-Trailer
(A) Item: Four-Axle 40' Container Semi-Trailer
(B) Model: LR9500TJZP
(C) Weight:
(1) Curb weight: 8,000kg
(2) Loading capacity:54,400kg
(3) Total weight: 62,400kg
(D) Frame: Heavy duty two main fabricated 'I' Beam construction and longitudinal wise reinforced with Rolled channels. The frame will be manufactured from high tensile steel. The deck will be covered with chequered steel plate of 3mm. Able to load one 40', two 20' or one 20'in middle with 12 units of container twist lock
(E) Running system:
1 12-ton BPW * 4
2 Suspension: 2 sets of SAF double-axle multi-leaf suspension system, 11*13*100 mm;
3 Rim:11.75-22.5 *9;
4 Tire: 385R22.5 *9
(F) Kingpin(welded): 3.5';
(G) Landing gear: Baoming-Holland, Double speed linkage (made in China)
(H) Braking system:2 Lines air brake system,WABCO valve, 30' and 30/30' air chamber,energy storage parking brake:
(I) Circuit: Chinese standard 24V, 7-Pin socket;
(J) Others
1 Winch type spare wheel carrier: 2 units;
2 Tool box: One unit
3 One set of driver's tool: One wheel nut spanner, one hub nut spanner, one cranking bar
4 Side steel underrider;
5 Mud guard
(L) Surface:
1 Entire steel surface will be sandblasted before painting
2 Zinc-rich premier & top coating (color as client's requirement)

Place of Origin:	Tianjin Tianjin in China
Model No:	LR9500TJZP
Brand Name:	LOHR
Supply Ability:	10,000/year
Package:	2units in one package
Delivery Time:	30
