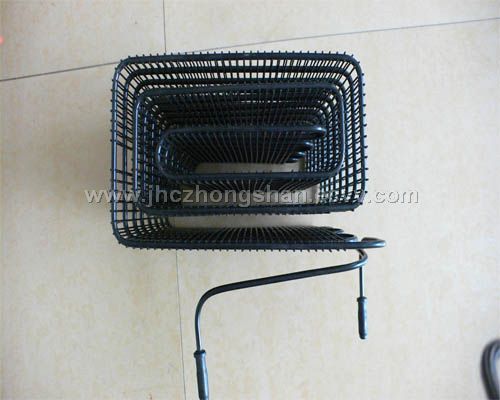

condenser

Detailed Product Description

Cost effective design solution
Compatible with all new refrigerants
Improved energy efficiency
Advanced corrosion resistance
Excellent heat transfer characteristics
Fully filled pressure n2(if required)
Max. Dimension:2000mmx1000mmx200mm
Od tube:0.1875"(4.76mm) other size available,
Contact us
Wire: Bright basic low carbon steel
16 gauge (0.0625") (1.59mm)
17 gauge (0.0540") (1.37mm)
18 gauge (0.0475") (1.21mm)
Finish: Black epoxy power coating
Black e-coat
Configuration:
Standard: Flat, wire-on-tube
Custome: Folded, wave flow, compact, rolled
Tests & inspection:
Standard: Form gauge inspection as need
Optional: Moisture and residue testing
