permanent magnet lifters/magnetic lifters

Detailed Product Description

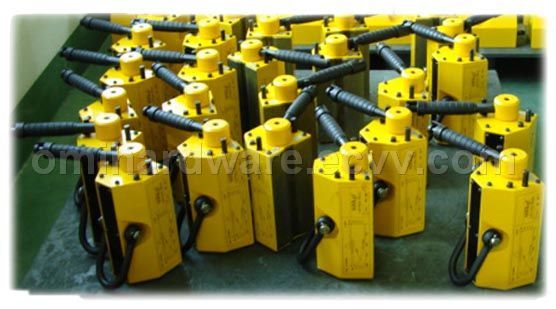

Permanent Magnetic Lifters, Magnetic Lifters - Holding Plate More Than 6000kgs
We offer a range of 6 heavy-duty permanent magnetic lifters designed to provide maximum safety for a wide range of lifting applications, up to 6000 Kgs.
Strong magnetic lifters can be used on flat or round ferrous work pieces. They can be combined with transporting hoists or integrated as part of a load/unload system. The flexibility of these "peace of mind" lifters is limited only by your imagination!
Model Rated lifting strength Cylindrical lifting strength Max pull-off strength L B H R Operation temperature Ddad weight
(kgf) (kgf) (kgf) 'C (kg)
PML-100 100 50 350 64 92 97 126 <80 3
PML-300 300 150 1050 92 162 91 155 <80 10
PML-600 600 300 2100 122 232 117 196 <80 24
PML-1000 1000 500 3500 175 258 163 285 <80 50
PML-2000 2000 1000 7000 234 378 212 426 <80 125
PML-3000 3000 1500 10500 286 458 261 521 <80 220
Model: PML-100, PML-300, PML-600, PML-1000-6000
Min. Order: No Minimum Order!
