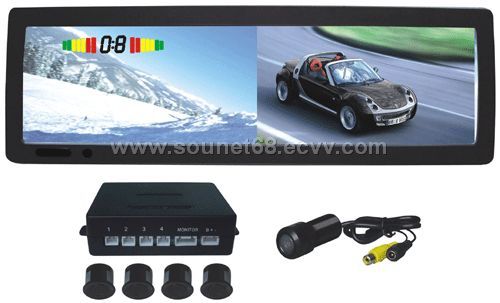

TFT-LCD Parking sensor with camera

TFT-LCD Parking sensor with camera
6"TFT-LCD Monitor Mirror
Waterproof day & night digital (ccd or cmos) camera
2 video input,1video output
Parking system comes on automatically when reversing
Act automatically once reversing gear is in place
Standard video signal output,can connect monitor
Distance of obstacle is indicated with digital
Simulating strip indicate the direction of obstacle
2,3or4 detectors are selectable
Ccd or cmos camera is selectable
TECHNICAL SPECIFICATIONS:
RATED VOLTAGE: 12V DC (24V available)
operating range: 10.5v-16v dc
rated current : 20mA-200mA
detecting distance: 0.3-2.0m
ultrasonic frequency: 40khz
display working temperature: -20C~+80C

Place of Origin:	China,Guangdong ,Shenzhen
Model No:	SN-658P
Brand Name:	sounet
Delivery Time:	3
